We are working on something big. Our main product is still under development. Meanwhile, check out our side products.

NOTE: we do not re-sell generic or 3rd party products. All products are developed in-house by ASOK Technologies and not available elsewhere.

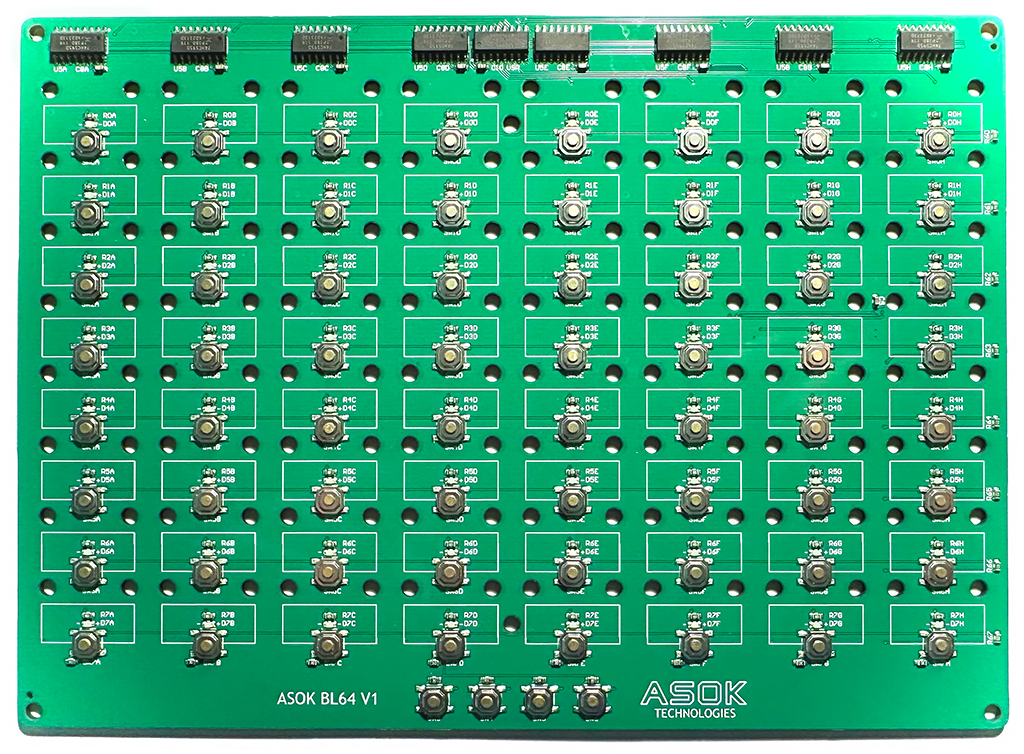

ASOK BL64 V1 Module

A serially controlled matrix of 64 tactile switches and 64 LEDs, to control custom musical instruments.

BL64 can be hooked up to a UART using an RX and a TX line at 38400 baud. Messages to turn on/off LEDs as well as events about switches being pressed or released are transmitted as 2 byte messages.

ASOK LGA12 Cable

A flex cable to connect an LGA12 package to I2C.

The cable contains a footprint for an LGA12 package (4.4x2.4x1.0mm) as well as two capacitors, and on the other side a 6pin FPC header with stiffener for use with zero-insertion-force FPC headers of 0.5mm pitch. This cable is used to hook LGA12 components up to the I2C bus of digital musical instruments.

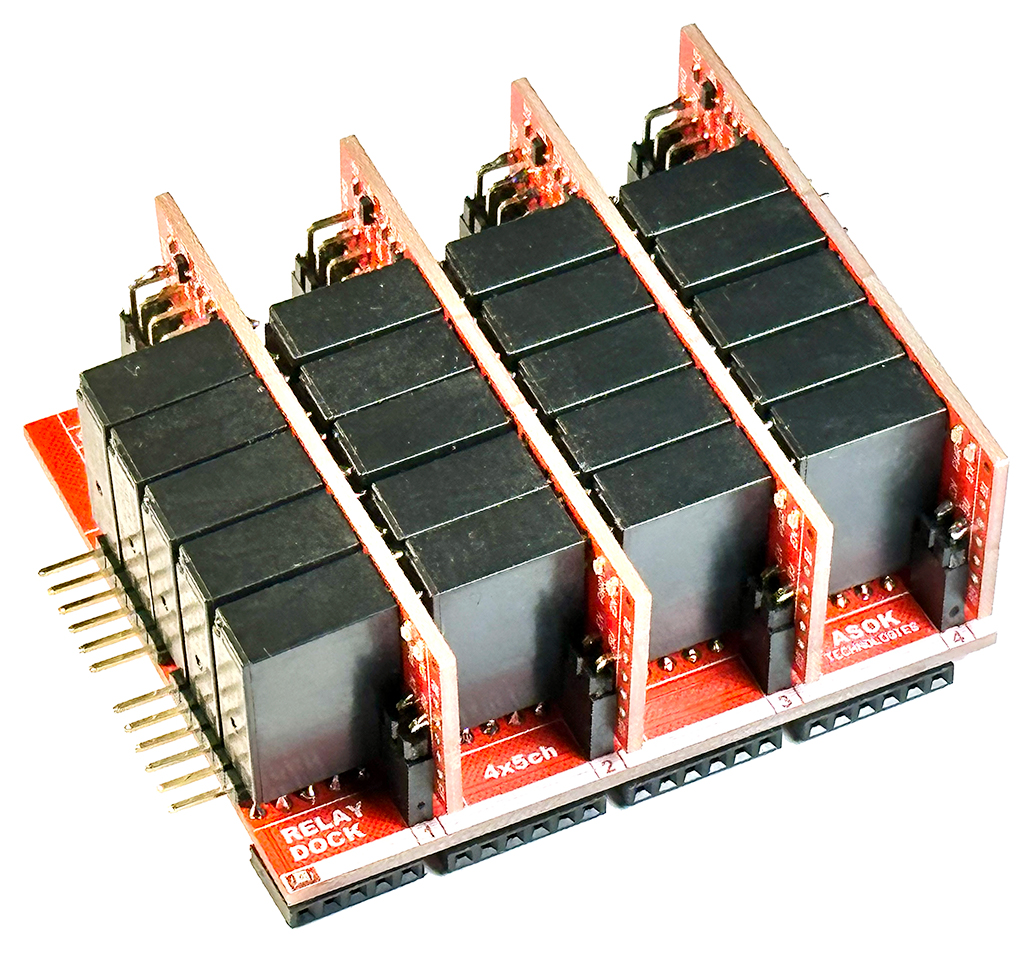

ASOK 4x5ch Relay Dock

A dock carrying up to 4 relay modules with 5 channels each.

This product is used to multiplex a chip programmer between up to 4 different chips when programming OTP-devices for use in musical instruments. One relay module multiplexes 4 clock and data pins as well as one VDD pin.

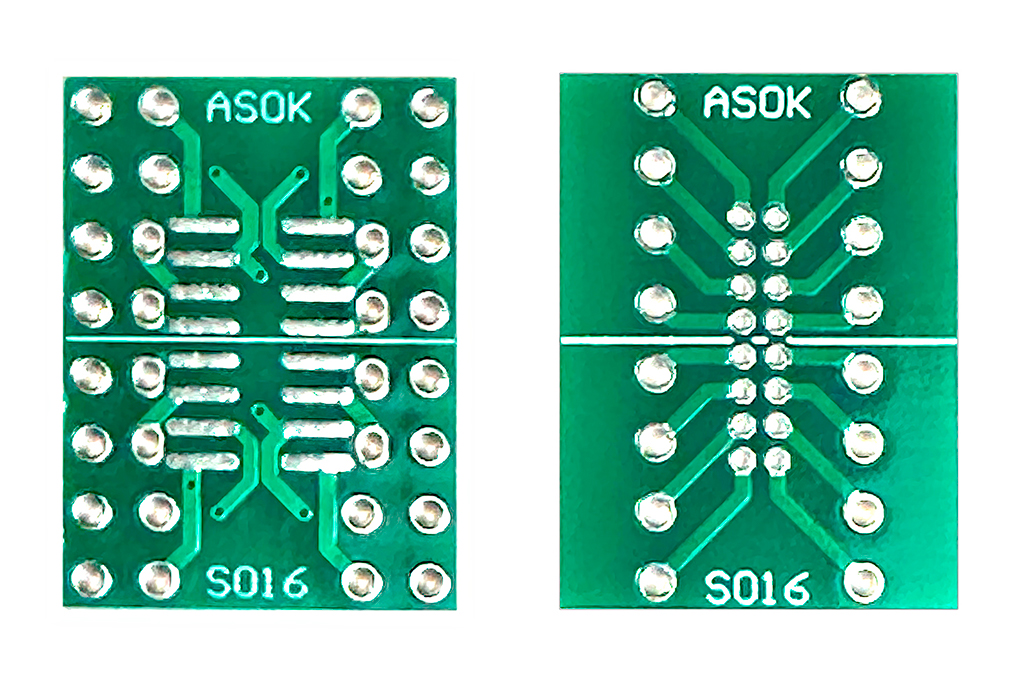

ASOK SO16 to DIP Adaptor

A PCB adaptor for SO16 / SOP16 / SOIC16 packages to 0.1" DIL.

This adaptor makes it possible to use 0.05" pitch standard packages (SO16 / SOP16 / SOIC16) with prototyping breadboard as well as standard 0.1" perf-boards by converting the pinout to dual-in-line. The module is available as a SMT and a THT version.

Ordering information

Our products are currently only available by purchase order with a minimum order quantity of 1000 pieces. For pricing, please contact us directly with a request for quote, stating your required quantity. Use the button below to send us an e-mail and we will get back to you.
